Electronic Grade High Purity 99.9999% 6n Sih4 Cylinder Gas Silane

Products

Electronic Grade High Purity 99.9999% 6n Sih4 Cylinder Gas Silane

MOQ:	1kg
Price:	US $45/kg
Standard Packaging:	Cylinder/Tank
Delivery Period:	15 days
Payment Method:	L/C, T/T
Supply Capacity:	50000kg/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

Model Number

Document

Product Name:

Silane

Valve:

Diss632

Boiling Point:

-112 ºC

Melting Point:

-185 ºC

Cylinder Pressure:

15MPa/20MPa

Cylinder Standard:

DOT/ISO/GB

Transport Package:

Y-Cylinder, T-Drum, Tt, Tanker

Specification:

20L, 40L, 280L And Customizable

Trademark:

Origin:

China

HS Code:

2812190091

Supply Ability:

50000kg/Month

CAS No.:

7803-62-5

Formula:

EINECS:

232-263-4

Constituent:

Industrial Pure Air

Grade Standard:

Electronic Grade

Chemical Property:

Inflammable Gas

Customization:

Available | Customized Request

Minimum Order Quantity:

Price:

US $45/kg

Packaging Details:

Cylinder/Tank

Delivery Time:

15 days

Payment Terms:

L/C, T/T

Supply Ability:

50000kg/month

Highlight:

Electronic Silane Gas

Sih4 Silane Gas

Electronic sih4 gas

Product Description

Electronic Grade 6n Sih4 Silane Gas Ultra High Purity 99.9999%

SiH4 refers to silane, which is a chemical compound composed of one silicon atom bonded to four hydrogen atoms. Here are some key points about SiH4:

Chemical Formula: SiH4
Molecular Weight: 32.12 g/mol
Structure: Silane has a tetrahedral molecular geometry, with the silicon atom at the center and four hydrogen atoms arranged around it.
Physical Properties: Silane is a colorless, flammable gas with a pungent odor. It is less dense than air and can form explosive mixtures when combined with air.
Chemical Reactivity: Silane is highly reactive and can readily react with oxygen, water, and other substances. It is pyrophoric, meaning it can ignite spontaneously in the presence of air or moisture.
Applications: Silane has various applications, primarily in the semiconductor industry. It is used as a precursor in the chemical vapor deposition (CVD) process to deposit thin films of silicon onto semiconductor substrates. Silane is also used in the production of solar cells, optical fibers, and certain types of coatings.
Safety Considerations: Silane is highly flammable and can pose fire and explosion hazards. It is also toxic and can cause chemical burns. Proper safety precautions, including the use of specialized equipment and trained personnel, should be followed when handling and working with silane.
Storage and Handling: Silane is typically stored and transported in specialized containers under controlled conditions to prevent exposure to air and moisture. It is handled with extreme caution due to its reactivity and flammability.
Environmental Impact: Silane is not considered a significant environmental hazard. However, its use and disposal should be in accordance with local regulations and best practices to minimize any potential impact.

Basic Info.

Model NO.	Sih4	Boiling Point	-112 ºC
Density	1.34 Kg/M³	Melting Point	-185 ºC
Cylinder Pressure	12.5MPa/15MPa/20MPa	Transport Package	47L/440L/ISO Tank
Specification	47L/440L/ISO Tank	Origin	China
HS Code	2931900090	Production Capacity	20, 000tons/Year

Specification:
CAS No.: 7803-62-5
EINECS No.: 232-263-4
UN No.: UN2203
Purity: 99.9999%
Dot Class: 2.1
Appearance: Colorless
Grade Standard: Electronic Grade

Specification	99.9999%
Carbon Monoxide	≤ 0.05 ppm
Carbon Dioxide	≤ 0.05 ppm
Total chloride	≤ 0.1 ppm
Methane	≤ 0.05 ppm
C2-C4	≤ 0.1 ppm
Nitrogen	≤ 0.5 ppm
Oxygen	≤ 0.05 ppm
Moisture	≤ 0.1 ppm
Silyl Ether	≤ 0.1 ppm
Methyl Silane	≤ 0.1 ppm
Disilane	≤ 0.3 ppm
Hydrogen	≤ 20 ppm
Aluminum	≤ 0.02 ppba
Antimony	≤ 0.02 ppba
Arsenic	≤ 0.02 ppba
Gallium	≤ 0.02 ppba
Boron	≤ 0.02 ppba
Phosphorus	≤ 0.02 ppba
Iron + Chromium + Nickel + Copper + Zinc	≤ 1 ppba

Detailed Photos

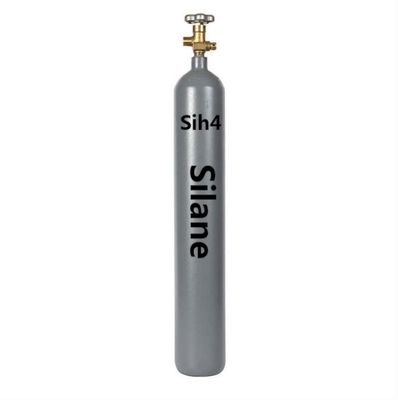

Electronic Grade High Purity 99.9999% 6n Sih4 Cylinder Gas Silane 0

Packaging & Shipping

Cylinder Specifications		Contents
Cylinder Capacity	Valve	Weight
47L	DISS632	10 kgs
440L	DISS632	120 kg

Electronic Grade Ultra High Purity 99.9999% 6n Silane Gas Sih4 Gas

Shanghai Kemike Chemical Co., Ltd is staffed by trained personnel, combine many years experience in Gas industry .We supply cylinder gas, electronic gas, etc ., and the gas holder, panel, valves and fittings and other equipment, parts and engineering services to our customers in China and worldwide; The products are involved in various industrial fields, such as semiconductor chip, solar cell, LED, TFT-LCD, optical fiber, glass, laser, medicine , etc., Our mission is to partner with our global customers to provide support, solutions and quality products that are innovative,reliable, and safe.

Our products mainly include: H2, O2, N2, Ar, CO2, propane, acetylene, helium, laser mixed gas, SiH4, Sih2cl2, SiHCL3, SiCL4, NH3, CF4, NF3, SF6, HCL, N2O, doping mixed gas (TMB, PH3, B2H6) and other electronic gases.
