| MOQ: | 1kg |
| Price: | US $ 9.5/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 Tons/Year |
Sulfur hexafluoride (SF6) is a colorless, odorless, non-toxic, and non-flammable gas. It is composed of one sulfur atom bonded with six fluorine atoms. SF6 is a potent greenhouse gas with a high global warming potential, which has led to its regulation and restricted use in various industries.
Here are some key points about sulfur hexafluoride:
Electrical Industry: SF6 is widely used as an insulating gas in high-voltage electrical equipment such as circuit breakers, switchgear, and transformers. It provides excellent electrical insulation properties and enables compact designs due to its high dielectric strength.
Medical Applications: SF6 has been used as a contrast agent in medical imaging procedures, particularly in ophthalmology. However, its use in this field has been largely replaced by other gases due to safety concerns.
Industrial Processes: SF6 is used in various industrial applications, including the manufacturing of semiconductors, magnesium casting, and sound insulation. It can also be found in some tracer gas applications, leak detection systems, and particle accelerators.
Environmental Impact: SF6 is a potent greenhouse gas with a global warming potential (GWP) of 23,900 times that of carbon dioxide (CO2) over a 100-year period. Its long atmospheric lifetime contributes to its significant impact on climate change. Due to its high GWP, efforts are being made to reduce and control SF6 emissions.
Regulatory Measures: Many countries have implemented regulations and initiatives to minimize SF6 emissions. The European Union, for example, has established regulations under the F-Gas Regulation (EU) No 517/2014, which aims to reduce SF6 emissions and promote the use of alternative technologies.
Alternatives: Various alternative gases and technologies are being explored to replace SF6 in different applications. These alternatives include gases such as nitrogen (N2), carbon dioxide (CO2), and dry air, as well as solid insulation materials.
| Transport Package: | 40L, 47L, 50L, 500L | Melting Point | -50.8ºC |
| Trademark: | CMC | Boiling Point | -63.8ºC |
| Specification | 99.90% | Production Capacity | 5000tons/Year |
| Cylinder Pressure | 15MPa/20MPa | Valve | Qf-2, Cga590 |
| Appearance | Colorless, Odorless | Density | 6.0886 Kg/M3 |
Specifications:
| Specifications | Company Standard |
| SF6 | ≥ 99.995% |
| Air | ≤ 10 ppm |
| CF4 | ≤ 2 ppm |
| C2F6 | ≤ 20 ppm |
| C3F8 | ≤ 5 ppm |
| Low Sulfide | Not Detected |
| H2O | ≤ 1 ppm |
| Acidity as HF | ≤ 0.1 ppm |
| Hydrolysable Fluor ides as HF | ≤ 0.3 ppm |
| Mineral Oil | ≤ 1 ppm |

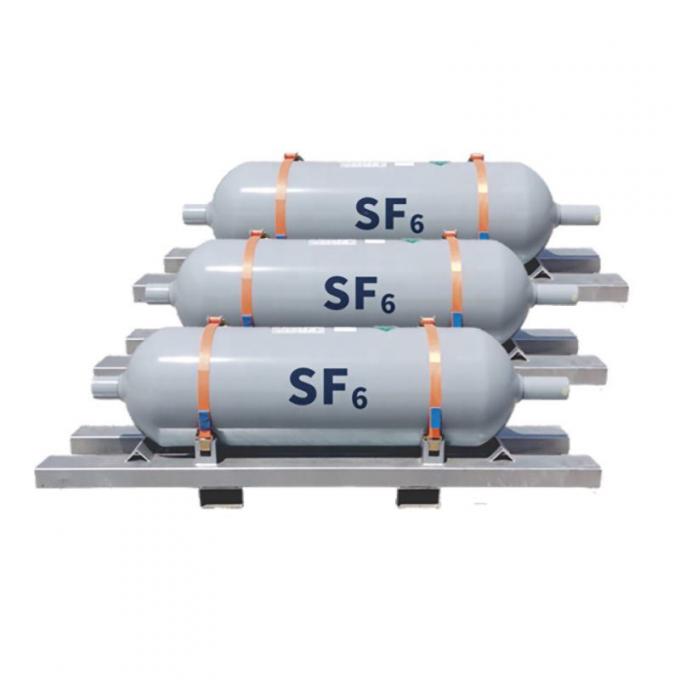

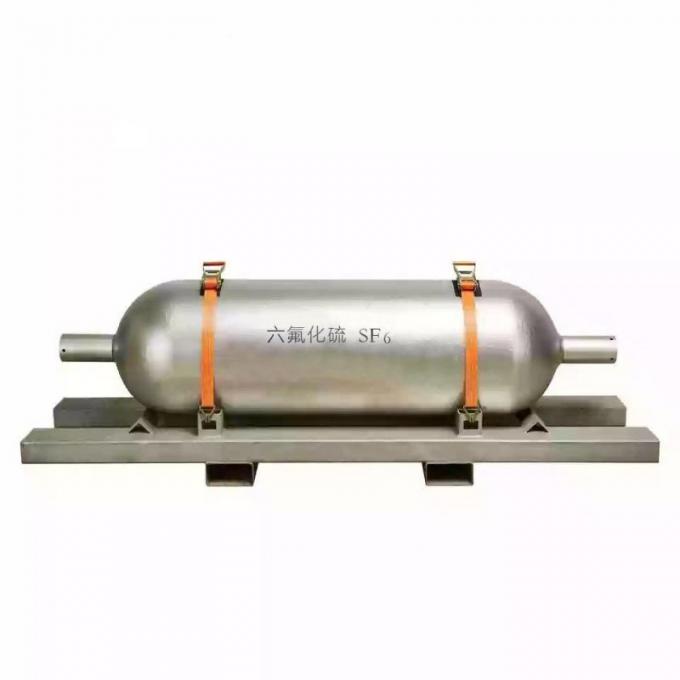

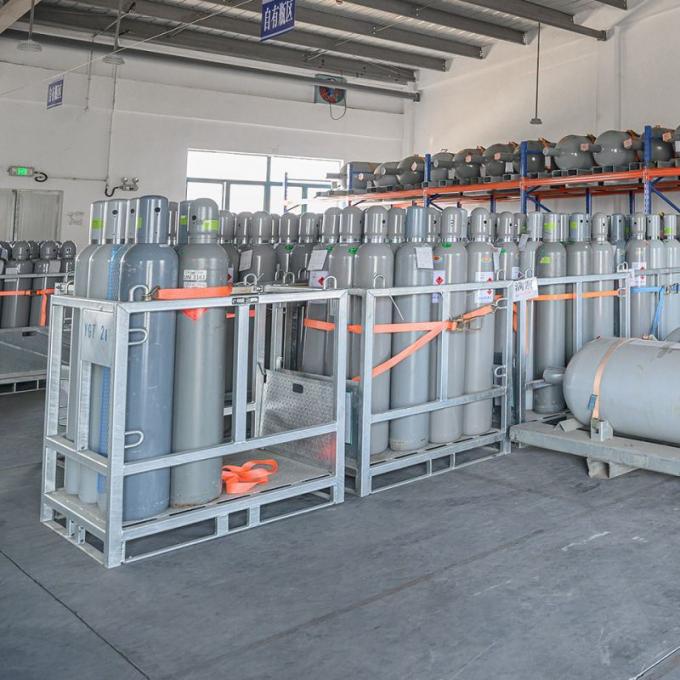

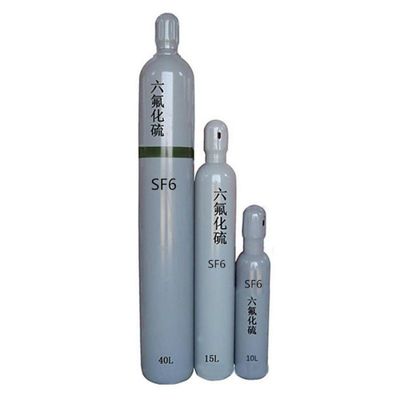

Detailed Photos
|
|
| MOQ: | 1kg |
| Price: | US $ 9.5/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 Tons/Year |
Sulfur hexafluoride (SF6) is a colorless, odorless, non-toxic, and non-flammable gas. It is composed of one sulfur atom bonded with six fluorine atoms. SF6 is a potent greenhouse gas with a high global warming potential, which has led to its regulation and restricted use in various industries.
Here are some key points about sulfur hexafluoride:
Electrical Industry: SF6 is widely used as an insulating gas in high-voltage electrical equipment such as circuit breakers, switchgear, and transformers. It provides excellent electrical insulation properties and enables compact designs due to its high dielectric strength.
Medical Applications: SF6 has been used as a contrast agent in medical imaging procedures, particularly in ophthalmology. However, its use in this field has been largely replaced by other gases due to safety concerns.
Industrial Processes: SF6 is used in various industrial applications, including the manufacturing of semiconductors, magnesium casting, and sound insulation. It can also be found in some tracer gas applications, leak detection systems, and particle accelerators.
Environmental Impact: SF6 is a potent greenhouse gas with a global warming potential (GWP) of 23,900 times that of carbon dioxide (CO2) over a 100-year period. Its long atmospheric lifetime contributes to its significant impact on climate change. Due to its high GWP, efforts are being made to reduce and control SF6 emissions.
Regulatory Measures: Many countries have implemented regulations and initiatives to minimize SF6 emissions. The European Union, for example, has established regulations under the F-Gas Regulation (EU) No 517/2014, which aims to reduce SF6 emissions and promote the use of alternative technologies.
Alternatives: Various alternative gases and technologies are being explored to replace SF6 in different applications. These alternatives include gases such as nitrogen (N2), carbon dioxide (CO2), and dry air, as well as solid insulation materials.
| Transport Package: | 40L, 47L, 50L, 500L | Melting Point | -50.8ºC |
| Trademark: | CMC | Boiling Point | -63.8ºC |
| Specification | 99.90% | Production Capacity | 5000tons/Year |
| Cylinder Pressure | 15MPa/20MPa | Valve | Qf-2, Cga590 |
| Appearance | Colorless, Odorless | Density | 6.0886 Kg/M3 |
Specifications:
| Specifications | Company Standard |
| SF6 | ≥ 99.995% |
| Air | ≤ 10 ppm |
| CF4 | ≤ 2 ppm |
| C2F6 | ≤ 20 ppm |
| C3F8 | ≤ 5 ppm |
| Low Sulfide | Not Detected |
| H2O | ≤ 1 ppm |
| Acidity as HF | ≤ 0.1 ppm |
| Hydrolysable Fluor ides as HF | ≤ 0.3 ppm |
| Mineral Oil | ≤ 1 ppm |
Detailed Photos
