Factory Prcie Research And Industrial Applications Cylinder Gas Helium High Purity He

Products

Factory Prcie Research And Industrial Applications Cylinder Gas Helium High Purity He

MOQ:	1 Piece
Price:	US $300/PC
Standard Packaging:	Cylinder/Tank
Delivery Period:	30 days
Payment Method:	L/C, T/T
Supply Capacity:	3000 Pcs/Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CMC

Certification

COA

Model Number

Document

Product Brochure PDF

Product Name:

Helium Gas

Class (Imdg):

2.2

Appearance:

Colorless

Relative Gas Density:

0.14

Gas Group:

Compressed Gas

Specification:

40L, 50L

Trademark:

CMC

Origin:

China

HS Code:

2804290000

Supply Ability:

10000 Bottles Per Month

CAS No.:

7440-57-9

Formula:

EINECS:

7440-57-9

Constituent:

Industrial Pure Air

Grade Standard:

Industrial Grade

Chemical Property:

Non-Flammable Gas

Customization:

Available | Customized Request

Minimum Order Quantity:

1 Piece

Price:

US $300/PC

Packaging Details:

Cylinder/Tank

Delivery Time:

30 days

Payment Terms:

L/C, T/T

Supply Ability:

3000 Pcs/Month

Highlight:

Industrial Cylinder Gas Helium

High Purity Helium Gas

Research Cylinder Gas Helium

Product Description

Helium gas, symbolized as He, is an element found in the periodic table with atomic number 2. It is the second lightest and second most abundant element in the universe. Helium is a noble gas belonging to Group 18. Here are some key points about helium gas:

Chemical Symbol: He
Atomic Number: 2
Atomic Weight: 4.0026 g/mol
Physical Properties: Helium is a colorless, odorless, and tasteless gas at standard conditions. It is the second lightest gas, after hydrogen, and has a density of approximately 0.1785 grams per liter at 0 degrees Celsius and 1 atmosphere of pressure. Helium has a boiling point of -268.93 degrees Celsius (-452.07 degrees Fahrenheit) and a melting point of -272.2 degrees Celsius (-457.96 degrees Fahrenheit).
Abundance and Occurrence: Helium is the second most abundant element in the universe, primarily formed through nuclear fusion in stars. However, it is relatively rare on Earth. It is obtained as a byproduct during the extraction of natural gas, where certain gas fields have higher concentrations of helium.
Applications: Helium gas has various applications in different fields. Its most well-known use is in filling balloons and airships due to its low density, making them float. Helium is also used in cryogenics, as it can reach extremely low temperatures when liquefied, making it suitable for cooling superconducting magnets in MRI machines, particle accelerators, and other scientific equipment. Additionally, helium is used as a shielding gas in welding processes, in breathing mixtures for deep-sea diving, in certain types of lasers, and in various research and industrial applications.
Liquid Helium: Helium can be liquefied at extremely low temperatures, below its boiling point. Liquid helium has unique properties, such as superfluidity and superconductivity, which make it valuable for scientific research and applications in low-temperature physics.
Safety Considerations: Helium gas is generally considered to be safe and non-toxic. It is not flammable and does not support combustion. However, as with any compressed gas, proper handling, storage, and ventilation should be ensured to prevent accidents.
Helium Shortage: There have been concerns about the global helium supply in recent years due to its limited availability and increasing demand. Helium is a non-renewable resource, and its extraction and conservation are important to ensure its sustainable use in various applications.

Basic Info.

Filling Pressure	150 Bar-200 Bar	Un-No.(DOT)	Un 1046
Formular	He	Appearance	Colorless Gas
Case No.	7440-59-7	Purity	99.9%-99.999%
Transport Package	Gas Cylinders	Specification	40L-50L
Trademark	CMC	Origin	Suzhou, China
HS Code	2804290000	Production Capacity	10000 Bottles Per Month

Proper Shipping Name: Helium, Compressed
UN NO.: UN 1046
Hazard labels: 2.2-Non-flammable gas
CAS No.: 7440-59-7

Best Popular He CAS No. 7440-57-9 Helium Gas

Helium is a highly specialized product. It's chemically inert and non-flammable, with high thermal conductivity, low molecular weight and size, and the lowest boiling point known.

PRODUCT NAME	PURITY
Helium gas	≥ 99.9%
Helium gas	≥99.999%

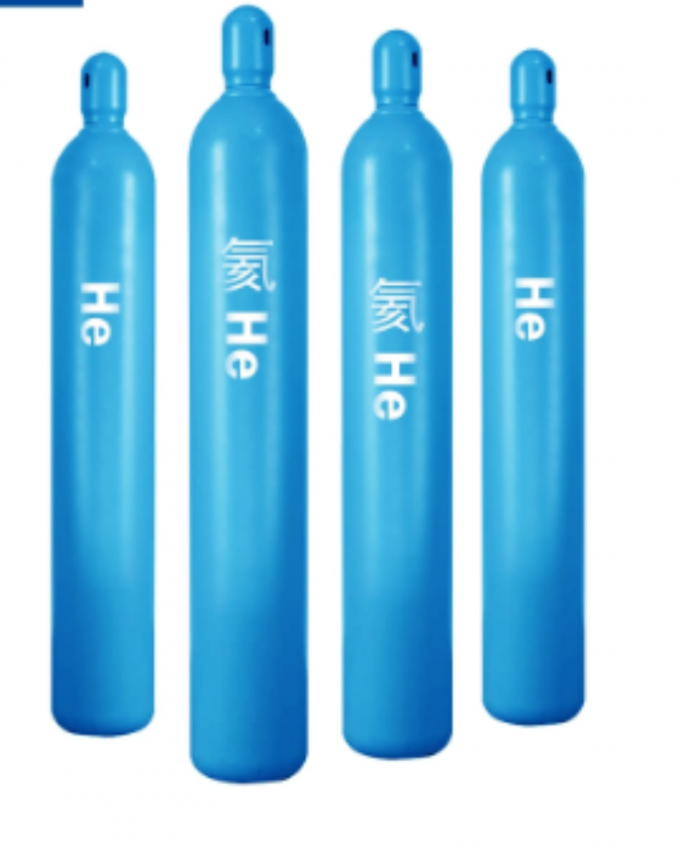

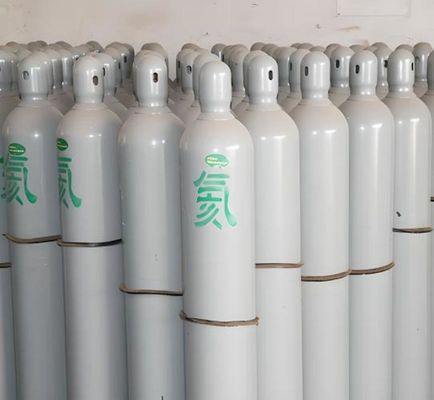

Normal Package cylinders

Size	40L-150BAR	50L-150 BAR	50L-200 BAR
Volume	6M3	7.5M3	10M3
Outside Diameter	219MM	232MM	232MM
Height	1333MM	1420MM	1420MM
Weight	47.8KG	52KG	52KG
Working pressure	150BAR	150BAR	200BAR
Test pressure	250BAR	250BAR	300BAR
Material	37Mn	37Mn	34CrMo4
Wall thickness	5.7MM	5.7MM	5.7MM
Standard	ISO9809-3	ISO9809-3	ISO9809-1

Smaller size cylinders:

Item	EC-13 ( 30 LB)	EC-22 ( 50 LB)
Water Capacity	13.4L	22.3L
Working Pressure	1.8Mpa	1.8Mpa
Weight	3.2Kg	5.1Kg
Balloon quantity	30 Pcs (9")	50 Pcs (9")
Ribbon	40 Meters	60 Meters
Packing Size	245245425	305305452
Qty/20' Container	1100pcs	650pcs

Applications:

Aerospace & Aircraft
From manufacturing to flight, helium is widely utilized throughout the aerospace and aircraft industry. In space flight operations, helium is used to purge hydrogen systems and works as a pressurizing agent for ground and flight fluid systems. It is also a source of lift in weather and other surveillance balloons.

Automotive & Transportation Equipment
Helium is used to test critical automotive parts such as radiator heat exchangers, air conditioning components, fuel tanks and torque converters to ensure they meet quality specifications. It is also used in combination with argon as a source of inflation in a growing number of airbags.

Diving
In combination with oxygen, helium is used in diving to help eliminate nitrogen narcosis, reduce breathing resistance at depth, and shorten decompression stops. Known as heliox, the mixture allows divers to reach greater depths for longer periods of time. The deeper the dive, the higher the concentration of helium, allowing divers to explore more and weld longer.

Best Popular He CAS No. 7440-57-9 Helium Gas

ShangHai CMC chemical Co.,ltd. is staffed by trained personnel, combine many years experience in Gas industry .We supply cylinder gas, electronic gas, etc ., and the gas holder, panel, valves and fittings and other equipment, parts and engineering services to our customers in China and worldwide; The products are involved in various industrial fields, such as semiconductor chip, solar cell, LED, TFT-LCD, optical fiber, glass, laser, medicine , etc., Our mission is to partner with our global customers to provide support, solutions and quality products that are innovative,reliable, and safe.
Our products mainly include: H2, O2, N2, Ar, CO2, propane, acetylene, helium, laser mixed gas, SiH4, Sih2cl2, SiHCL3, SiCL4, NH3, CF4, NF3, SF6, HCL, N2O, doping mixed gas (TMB, PH3, B2H6) and other electronic gases.
