Industrial/Medical/Electronic Grade Cheap Cylinder Gas Geh4 Germane

Industrial/Medical/Electronic Grade Cheap Cylinder Gas Geh4 Germane

MOQ: 1kg
Price: US $100/kg
Standard Packaging: Cylinder/Tank
Delivery Period: 15 days
Payment Method: L/C, T/T
Supply Capacity: 5000kg/month
Detail Information
Place of Origin
China
Brand Name
CMC
Certification
COA
Model Number
Geh4
Product Name:
Germane Gas
Transport:
By Sea
Appearance:
Colorless
Transport Package:
Cylinder
Specification:
44L
Trademark:
CMC
Origin:
China
CAS No.:
7782-65-2
Formula:
Geh4
Constituent:
Industrial Pure Air
Grade Standard:
Industrial Grade
Chemical Property:
Poisonous Gases
Purity:
99.999 %
Customization:
Available | Customized Request
Minimum Order Quantity:
1kg
Price:
US $100/kg
Packaging Details:
Cylinder/Tank
Delivery Time:
15 days
Payment Terms:
L/C, T/T
Supply Ability:
5000kg/month
Product Description

Product Description

Germane gas is a compound composed of germanium and hydrogen with the chemical formula GeH4. It is a colorless, flammable gas that is highly toxic and reactive. Here are some key points about germane gas:

  1. Chemical Composition: Germane gas is composed of one germanium atom bonded to four hydrogen atoms (GeH4).

  2. Properties: Germane gas possesses several important properties:

    • Toxicity: Germane gas is highly toxic and poses significant health hazards. Inhalation or exposure to high concentrations can cause severe health effects, including respiratory irritation, lung damage, and organ failure.

    • Flammability: Germane gas is flammable and can form explosive mixtures with air when exposed to an ignition source.

    • Volatility: Germane gas is a volatile compound, meaning it can easily vaporize at room temperature.

  3. Production: Germane gas can be produced through several methods, including the reaction of germanium tetrachloride (GeCl4) with hydrogen gas (H2) or the reaction of germanium dioxide (GeO2) with a reducing agent like hydrogen.

  4. Uses: Germane gas has various applications:

    • Semiconductor Industry: Germane gas is used in the production of semiconductors, particularly in the deposition of germanium-containing thin films. It is employed as a precursor in the chemical vapor deposition (CVD) process to create germanium-based layers for electronic devices.

    • Research and Development: Germane gas is used in research laboratories as a source of germanium for experiments and studies.

    • Specialty Chemical Synthesis: Germane gas can be used as a reagent in certain chemical reactions to introduce germanium into organic compounds or to synthesize specialized chemicals.

  5. Safety Considerations: Germane gas is highly toxic and poses significant health and safety risks. Some important considerations include:

    • Inhalation Hazard: Germane gas should be handled in well-ventilated areas or under appropriate fume hoods to prevent inhalation exposure.

    • Flammability Hazard: Germane gas is flammable and should be handled with caution to avoid ignition sources, such as open flames or sparks.

    • Storage and Handling: Proper storage, handling, and transportation practices should be followed to ensure the safety of germane gas. Safety equipment, such as gas detectors and personal protective equipment, should be used when working with this compound.

It is important to note that germane gas is highly toxic and poses significant health risks. Proper safety precautions, including appropriate ventilation, personal protective equipment, and adherence to safety guidelines, should be followed when working with this compound.

Basic Info.

Model NO. GeH4 Constituent Germane 99.999%
Grade Standard Electronic Grade Chemical Property Inflammable Gas
Trademark CMC Transport Package 44L
Specification 99.999 Origin China




Germane - ( GeH4 )
Description
Germane is a flammable , colorless gas with characteristic pungent ,nauseating odor .Its boiling point is - 90°C.  It is unstable and can decompose explosively when heated to greater than 330°C.

Specifications
Purity , % 99.999
Oxygen + Argon  ≤0.5 ppmv
Nitrogen ≤2.0  ppmv
Carbon Dioxide ≤2.0 ppmv
Carbon Monoxide ≤1.0 ppmv
Methane  ≤1.0 ppmv
Water  ≤1.0 ppmv
Chlorogermanes ≤5.0 ppmv
Digermane* ≤20.0 ppmv
Germoxanes ≤5.0 ppmv
Hydrogen* ≤50.0 ppmv
Trigermane  ≤1.0  ppmv

Ship
DOT Shipping Name  Germane
DOT Classification 2.3
DOT Label  Toxic Gas, Flammable Gas
UN Number  UN2192
CAS No. 7782-65-2
CGA/DISS/JIS 350/632/W22-14L
Shipped as  Compressed Gas

Technical Information
Cylinder State @ 21.1°C  Gas
Flammable Limits In Air  0.5-100%
Auto Ignition Temperature (°C ) 54.4
Molecular Weight (g/mol) 76.62
Specific gravity (air =1) 2.65
Critical Temperature ( °C ) 34.8
Critical Pressure ( psig )

Applications
Used for the deposition of epitaxial and amorphous silicon - germanium alloys , and as a component for
PECVD of ( Si, Ge )O2 films with controllable refractive index for photonic .

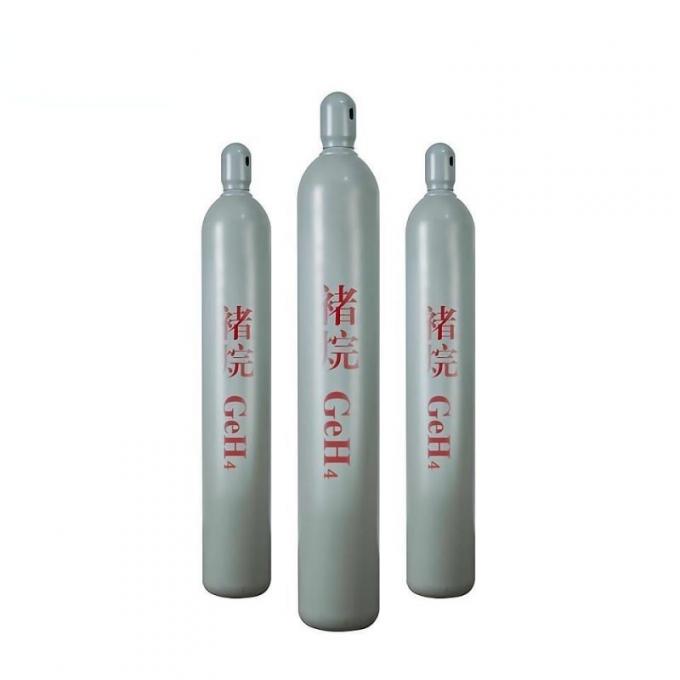

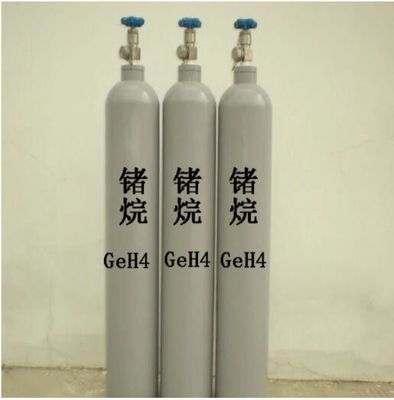

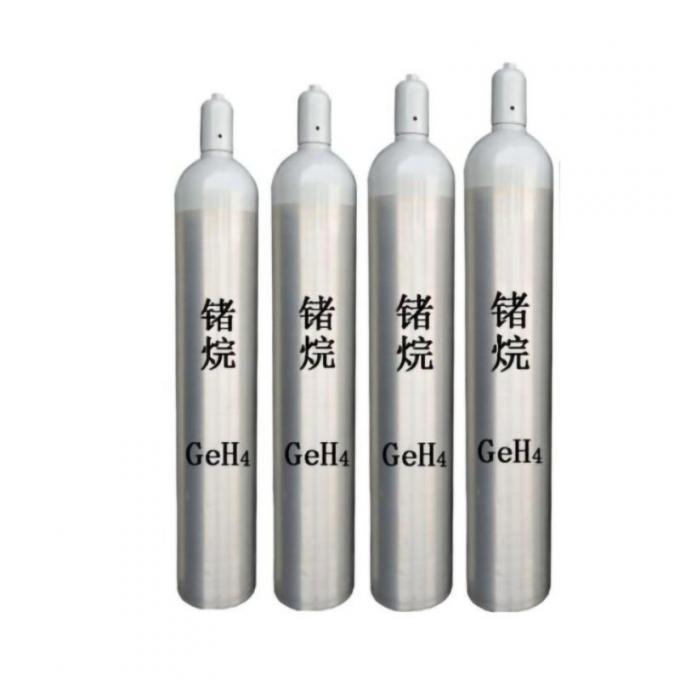

Detailed Photos


Industrial/Medical/Electronic Grade Germane Gas Geh4 Gas
Industrial/Medical/Electronic Grade Germane Gas Geh4 Gas


Company Profile

Industrial/Medical/Electronic Grade Germane Gas Geh4 Gas

Shanghai Kemike Chemical Co., Ltd is staffed by trained personnel, combine many years experience in Gas industry .We supply cylinder gas, electronic gas, etc ., and the gas holder, panel, valves and fittings and other equipment, parts and engineering services to our customers in China and worldwide; The products are involved in various industrial fields, such as semiconductor chip, solar cell, LED, TFT-LCD, optical fiber, glass, laser, medicine , etc., Our mission is to partner with our global customers to provide support, solutions and quality products that are innovative,reliable, and safe.
Our products mainly include: H2, O2, N2, Ar, CO2, propane, acetylene, helium, laser mixed gas,  SiH4, Sih2cl2, SiHCL3, SiCL4, NH3, CF4, NF3, SF6, HCL, N2O, doping mixed gas (TMB, PH3, B2H6) and other electronic gases.

Industrial/Medical/Electronic Grade Germane Gas Geh4 Gas
Industrial/Medical/Electronic Grade Germane Gas Geh4 Gas
